Cable Duct Pipes

• Color
• BLUE/RED/YELLOW/ORANGE

• Connection
• Butt Fusion

• Length
• 100 MTR Meter (m)

• Material
• Plastic

• Outer Diameter
• 20 mm TO 315 MM Meter (m)

• Section Shape
• Other

• Shape
• Round

• Standard
• ANSI

• Surface Treatment
• Other

• Thickness
• 1.9-2.3 Meter

• Tolerance
• hard Meter

• Warranty
• 5 year

• Application
• other, Cable management, telecom ducts, power cable protection

• Bend Radius
• Minimum 6-8 times pipe diameter

• Coating Type
• No additional coating

• Color
• Orange or Black (standard for electric/cable duct)

• Connection
• Other, Push fit / coupler / socket

• Connection Type
• Split coupler / Push fit

• Diameter
• 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, 110 mm, 120 mm, 160 mm, 180 mm, 200 mm

• Flexibility
• High, suitable for underground bends

• Length
• Standard coil length of 6 m, 12 m, or as required

• Material
• HDPE

• Material Grade
• Virgin / PE63 / PE80 / PE100 as per requirement

• Outer Diameter
• Available from 40 mm to 200 mm

• Product Type

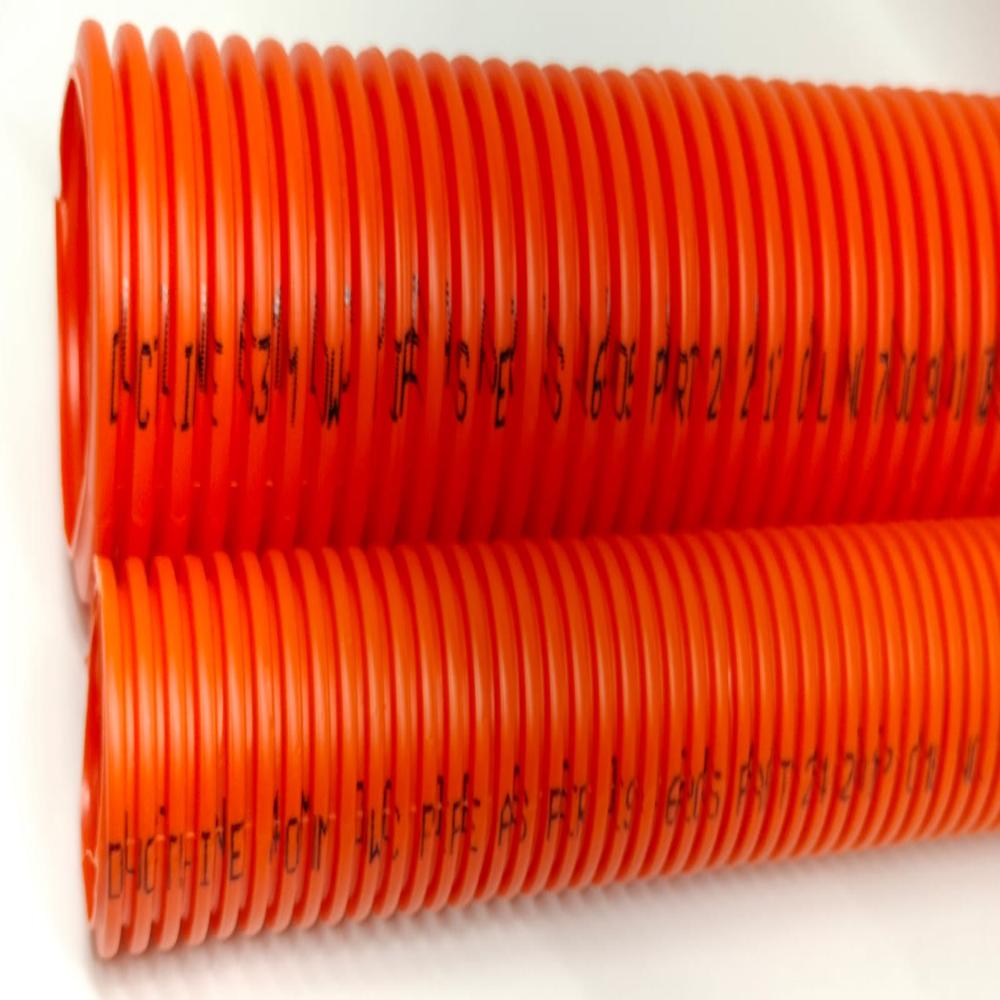

• Other, DWC Cable Duct Pipe

• Rated Pressure
• Generally non-pressure pipe; for mechanical strength only

• Sealing Type
• EPDM Rubber Ring Gasket (where applicable)

• Section Shape
• Other, Circular

• Shape
• Other, Round Corrugated

• Standard
• Other, IS 14930 / IS 16205 / IEC 61386 (as applicable)

• Surface Treatment
• Other, Smooth inner, corrugated outer

• Temperature Range
• -5C to +60C

• Tensile Strength
• >20 MPa

• Thickness
• 3 mm to 5 mm (varies with diameter)

• Tolerance
• 2% nominal

• Usage
• Underground electrical and telecom cable duct

• Yield Strength
• >18 MPa
